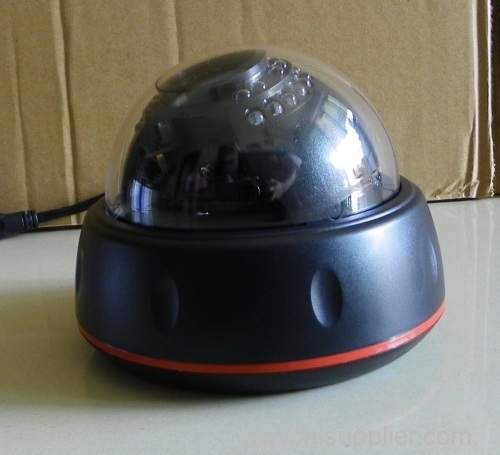

1.0 Megapixel Plastic Day & Night Indoor Dome Security High Definition IP Cameras DR-IP5N301DXH1 manufacturer from China DOROAD TECH COMPANY LIMITED

Product Detail

Model No.: DR-IP5N301DXH1

Production Capacity: 50000pcs per month

Delivery Date: 15 working days

Image Sensor: 1/4" 1.0 Megapixel OV9712 S...

Imageresolution: Max:1280*720

IR distance: 15-25meters

Frame rate: 30fps (1280*720)

Icloud Function: Support

Means of Transport: Ocean,Air;by Express

Packing: 1pc per polybag, color box

Brand Name: Megapixel HD IP Dome Camera...

Compression: H.264 High Profile

IR-CUT: Support

Lens: 6mm (8mm optional)

Lens mount: CS

POE: Support

1.0 Mega Pixel Plastic Day & Night Indoor Dome IP Camera
Megapixel IP Security Cameras
Security IP Cameras
Indoor IP Cameras Security
IP Cameras

1.0 Megapixel Plastic Day & Night Indoor Dome Security IP Cameras DR-IP5N301DXH1

1. 1/4" Progressive Scan OV CMOS

2. OV9712 Sensor with IR-CUT

3. Hi 3518 Chipset

4. 720P(1280*720) Output/1.0 Megapixel

5. Video System NTSC/PAL

6. Mechanical ICR Synchronous True O/N

7. Advanced H.264 High Profile Video Compression

8. Dual Stream Storage & Network

9. Full HP Fixed 6.0/8.0mm Lens

10. 15-25 Meter illumination

11. Supports iPhone, iPad, BlactBerry, Android, Symbian, Windows Mobile Remote Monitoring

12. Supports ONVIF 2.2 Version Protocol

13. 10/100 Mbps Ethernet Port

14. Supports iCloud(P2P) Function

15. Supports Google Chrome, Internet Explorer, Mozilla Firefox Safari Browser

1.0 Megapixel Plastic Day & Night Indoor Dome Security IP Cameras DR-IP5N301DXH1 1.0MP Dome IP Camera DR-IP5N301DXH1

	Model	DR-IP5N301DXH1
	Device	1.0 Megapixel OV9712 Sensor
	Size	1/4 inch
	Effective Pixels	720P:1280*720
Min. Scene Illumination	Color	0.1LUX (F1.2)
	B/W	YES
	IR Sensitivity	Yes
	IR Cut	Yes
Lens	Lens	6.0mm
	Viewing Angle	50°
Linux System		Internal Linux system
Day/ Night	IR distance	15-25M
Functions	Motion Detection	Yes
	Electronic Shutter	1/5-1/10,000sec
	BLC	Turn/Off
	AGC	Auto
	White Balance	Auto(indoor/outdoor)
S/N Ratio	S/N Ratio	≥50dB
Video Compression	Compression	H.264
	Picture Resolution	720P:1280*720
	Bit Rate	253K~8.0M bps
	Image Frame Rate	25FPS
Casing	Mount Types	Wall Bracket
Network	Ethernet	Ethernet(10/100Base-T),RJ-45 connector
	Protocol	TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3,NTP, RTP and RTCP
Software	Web Browser	Microsoft Internet Explorer under 11
	SDK	OPEN
	Security	Administrator password protection
Operating	Temperature	-30℃~60℃
	Humidity	-10～85%
	Power Consumption	2.0W~5.8W
Applicable		Family, office,residential, factories, parking lot
